Pressure Pro · Eagle Series II V-Belt (EB3025-EB5525)

Eagle Series II Gas V-Belt Pressure Washer

  • 2,500 - 4,200 PSI
  • 3 - 5.5 GPM
  • Honda GX200 / GX390, Kohler CH440
  • Gas · Cold water

The belt-drive Eagle Series II range: 17 gas models from 2,500 to 4,200 PSI at 3 to 5.5 GPM, on the same aircraft grade aluminum frame with a lifetime warranty.

About this model

The belt drive half of the Eagle Series II line. A V-belt runs the pump slower than the engine, which is what buyers choose when a machine is going to run all day, and it carries the same revolutionary aircraft grade aluminum frame with dual handles, no welds to fail, and a lifetime frame warranty.

Seventeen models cover 2,500 to 4,200 PSI at 3 to 5.5 GPM on Honda GX200 and GX390 or Kohler CH440 engines, with a choice of General Pump, AR, Cat and Viper pumps. Belt service is a single bolt: one interlocking belt cover, and engine-adjustable belt tension off the same bolt.

Every model can be ordered on a powder coated steel skid - precede the model number with S/. Electric start is an upgrade on the GX390 Honda models and includes a battery and marine battery box. All units are completely factory assembled, tested in the USA, and delivered ready to operate.

Key features

  • 17 models from 2,500 to 4,200 PSI at 3 to 5.5 GPM
  • V-belt drive, with single bolt belt cover and belt tension
  • Aircraft grade aluminum frame with dual handles, lifetime warranty
  • Honda and Kohler commercial engines; General Pump, AR, Cat and Viper pumps
  • Chemical injector assembly with quick connects, standard
  • 50 mesh inlet filter and adjustable pressure unloader
  • Thermo-sensor prevents overheating in bypass mode
  • Cart or powder coated steel skid, low oil shutdown

Specifications

Pressure
2,500 - 4,200 PSI
Flow
3 - 5.5 GPM
Engine
Honda GX200 / GX390, Kohler CH440
Pump
General Pump, AR, Cat or Viper
Drive
V-belt, single bolt cover and tension adjustment
Electric start
Upgrade on GX390 Honda models; battery and marine battery box included
Frame
Aircraft grade aluminum, lifetime warranty
Tires
Pneumatic
Hose
50' high pressure with quick connects
Nozzles
4 colour-coded QC spray nozzles, 1 QC chemical nozzle
Chemical injection
Injector assembly with quick connects
Inlet filter
50 mesh
Axle
3/4" cold rolled steel, threaded
Skid versions
S/ prefix, powder coated steel skid

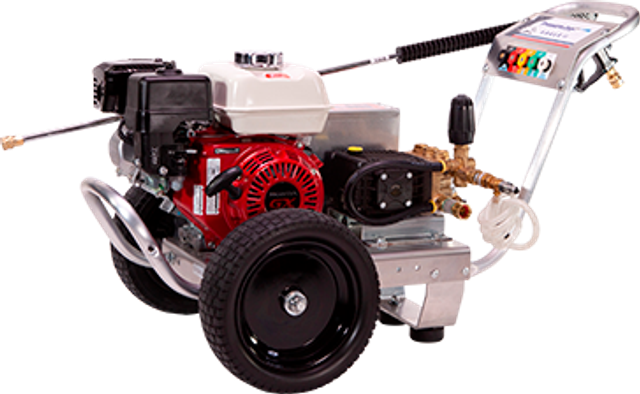

EB3025HG
3 GPM at 2,500 PSI - Honda GX200 - General Pump
EB4035HG
4 GPM at 3,500 PSI - Honda GX390 - General Pump
EB4035HGE
4 GPM at 3,500 PSI - Honda GX390 - General Pump
EB4040HA
4 GPM at 4,000 PSI - Honda GX390 - AR pump
EB4040HAE
4 GPM at 4,000 PSI - Honda GX390 - AR pump
EB4040HC
4 GPM at 4,000 PSI - Honda GX390 - Cat pump
EB4040HCE
4 GPM at 4,000 PSI - Honda GX390 - Cat pump
EB4040HG
4 GPM at 4,000 PSI - Honda GX390 - General Pump
EB4040HGE
4 GPM at 4,000 PSI - Honda GX390 - General Pump
EB4040KG
4 GPM at 4,000 PSI - Kohler CH440 - General Pump
EB4040KGE
4 GPM at 4,000 PSI - Kohler CH440 - General Pump
EB4042HV
4 GPM at 4,200 PSI - Honda GX390 - Viper pump
EB4042HVE
4 GPM at 4,200 PSI - Honda GX390 - Viper pump
EB4042KV
4 GPM at 4,200 PSI - Kohler CH440 - Viper pump
EB5030HG
5 GPM at 3,000 PSI - Honda GX390 - General Pump
EB5030HGE
5 GPM at 3,000 PSI - Honda GX390 - General Pump
EB5525HG
5.5 GPM at 2,500 PSI - Honda GX390 - General Pump
